Name: E3JK-R2M2 Photoelectric Sensor
SKU: 9900
Price: 78.00 MYR
Availability: InStock

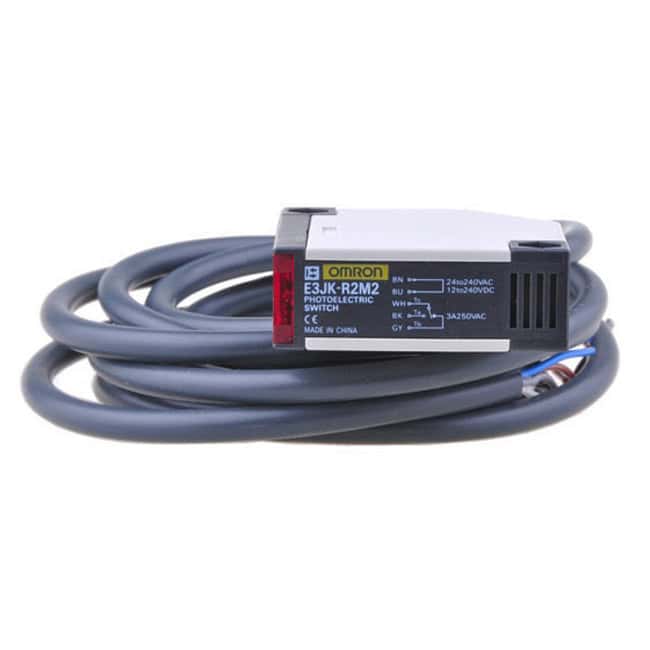

E3JK-R2M2 Photoelectric Sensor

Built-in amplifier accepts wide supply voltage range
Slim, space-saving construction measures only 50 x 50 x 17.4 mm.
Relay outputs with long life expectancy and high switching capacity (3 A, 250 V AC).

Categories: On Sale, Sensor

Contact Form Demo (#1)

Your Name

Phone

Country

Your Message

Description

Type of sensor:	Photoelectric
Range:	0…2.5m
Output configuration:	SPDT
Operation mode:	DARK-ON
Operation mode:	retro-reflective
Supply voltage:	24 ~ 240 VAC, 12 ~ 240 VDC
Connection:	lead 2m
IP rating:	IP65
Max. operating current:	3A
Operating temperature:	-25…55°C
Body material:	ABS
Sensors features:	The reflector is provided with a sensor.
Body dimensions:	50x50x22mm
Response time:	<30ms
