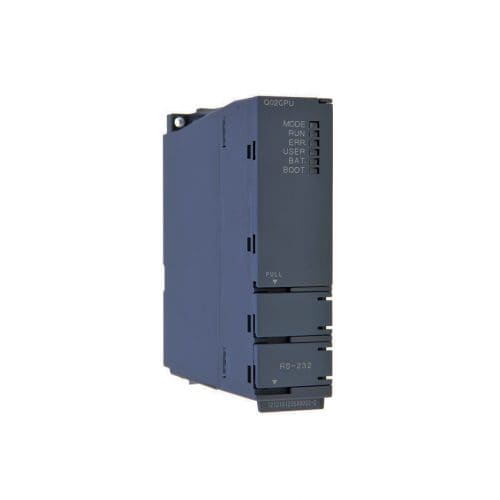

Q02CPU

Q02CPU

Mitsubishi MELSEC-Q Series High-Performance PLC CPU module 4096 I/O, 79 ns/com. 28k step memory

Category:

Description

Mitsubishi Q02CPU Series High-performance PLC CPU

Type:Q Series CPU Module
Description:Mitsubishi Q CPU module, 28k step memory, 79ns per instruction, multi-processor capability
Memory Size:28K Steps (112 kByte)
I/O points:4096 / 8192
Program Cycle Period:79 ns/log. instruction
Type of Memory:RAM, ROM, FLASH
Additional Program Memory Possible:Yes
SD Memory Card Slot:Yes
Rack Assembly Possible:Yes
Width (mm):27.4
Height (mm):98
Depth (mm):89.3
Weight (Kg):0.2



Catalog PDF

Q Series CPU User’s Manual
