R38RB-HT

R38RB-HT

PLC iQ-R Series, Main Base, 8 slots, Ex Temp

Category:

Description

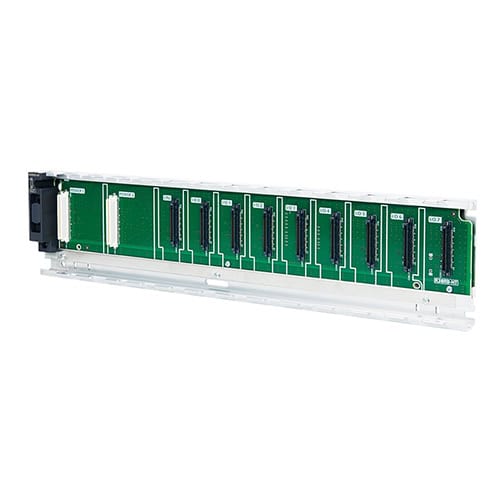

Mitsubishi R38RB-HT MELSEC iQ-R Series Main Base Unit

ItemExtended temp. range main base unit*5
R38RB-HT
Number of I/O modules installed8
DIN rail mounting adapter typeR6DIN1
External dimensions (H x W x D, mm)101 x 439 x 32.5

Base Unit iQ-R Series Specifications

R38RB-HT

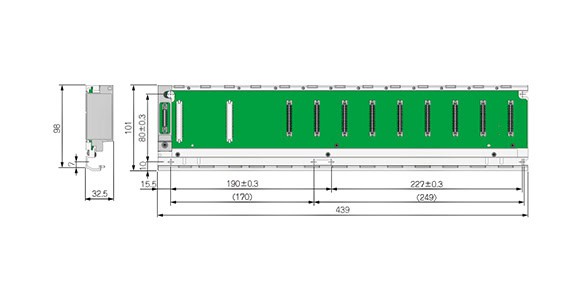

R38RB-HT dimensional outline drawing

  • Number of input/output units equipped: 8
  • 5 V DC internal current consumption: 0.86 A
  • Mounting hole size: M4 screw hole or ø4.5 (4.5 mm in diameter) hole (for M4 screw)
  • Mass: 0.72 kg
