R38B

R38B

8 slots, for MELSEC iQ-R Series main base modules

Category:

Description

Mitsubishi R38B MELSEC iQ-R Series Main Base Unit

ItemMain base unit (Standard)
R38B
Number of I/O modules installed8
DIN rail mounting adapter typeR6DIN1
External dimensions (H x W x D, mm)101 x 328 x 32.5

Base Unit iQ-R Series Specifications

R38B

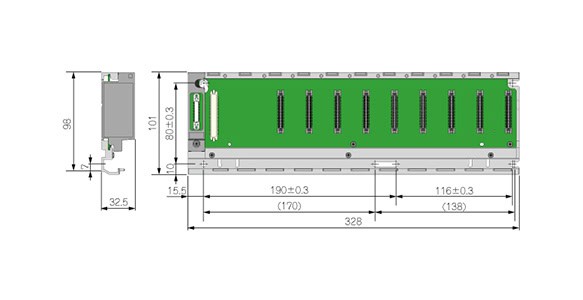

R38B dimensional outline drawing

  • Number of input/output units equipped: 8
  • 5 V DC internal current consumption: 0.71 A
  • Mounting hole size: M4 screw hole or ø4.5 (4.5 mm in diameter) hole (for M4 screw)
  • Mass: 0.55 kg
