RJ72GF15-T2
PLC iQ-R Series, CC-Link IE Field remote head
Description

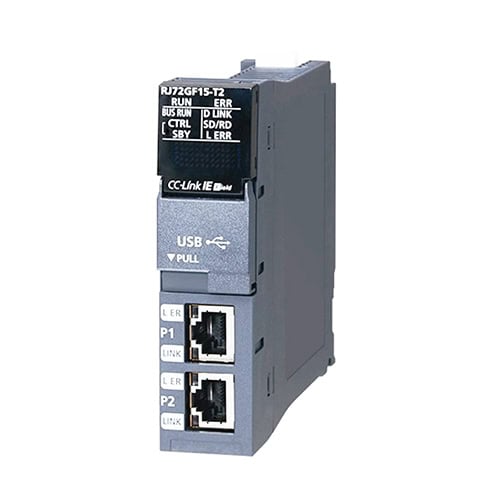

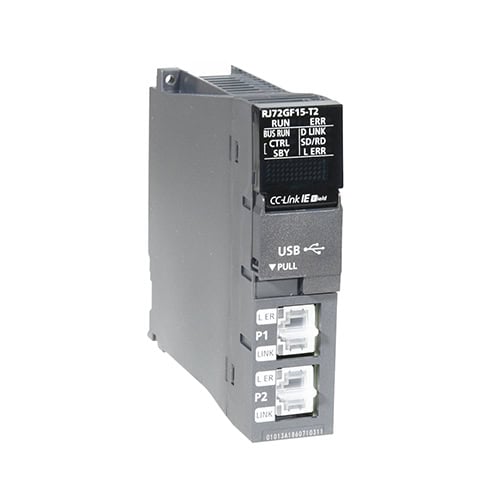

Mitsubishi RJ72GF15-T2 Series CC-Link IE Field Network Remote Head Module
Item | RJ72GF15-T2 |
Transmission speed | 1 Gbps |
Network topology | Line topology, star topology (both types can be on the same line), and ring topology |
Communication cable | Ethernet cable (Category 5e or higher, double-shielded/STP) |
Max. station-to-station distance | 100 m |
Overall cable distance (m) | Line topology: 12,000 (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12,100 (when 121 stations are connected) |
Remote input (RX), remote output (RY) | 16K points (16384 points, 2K bytes) |
Remote register (RWw, RWr) | 8K points (8192 points, 16K bytes) |
