RJ71EN71

RJ71EN71

Ethernet interface module, 1000Mbit/s, 1000BASETX/100BASETX/10BASE-T

Category:

Description

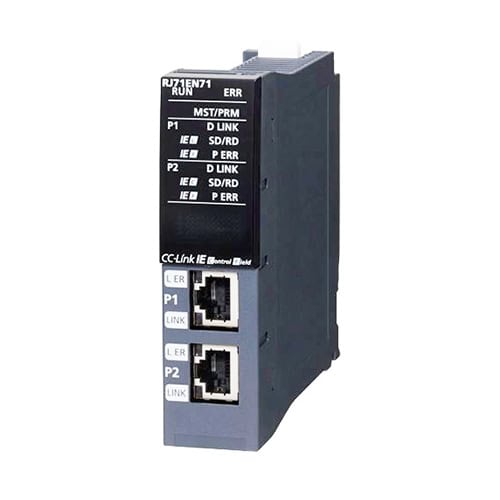

Mitsubishi RJ71EN71 MELSEC iQ-R Series Ethernet Interface Module

Transmission specifications
Data transmission speed1 Gbps/100 Mbps/10 Mbps
InterfaceRJ45 connector (Auto MDI/MDI-X)
Max. frame size (byte)1518/9022 (when jumbo frames are used)
IP versionCompatible with IPv4
Sending/receiving data storage memory
Number of simultaneous open connections128
Fixed buffer5K words x 16 (only P1 can be used)
Socket communications5K words x 48 (when only P1 is used), 5K words x 112 (when only P1/P2 is used)
Random access buffer6K words x 1
Simple CPU communication function1K word x 512 (when only P1 is used), 1K word x 1024 (when only P1/P2 is used)
MODBUS®/TCP communication functionSlave function*3
CC-Link IE Field/Control cable specifications
Communication cableEthernet cable (Category 5e or higher, double-shielded/STP)
