PLC iQ-R Series; Programmable controller CPU, 40K steps

Category:

Description

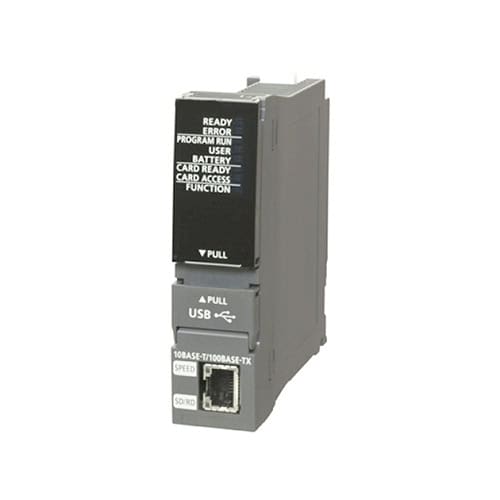

Mitsubishi R04CPU MELSEC iQ-R Series Sequencer CPU

ItemR04CPU
Control methodStored program cyclic operation
I/O control modeRefresh mode (Direct access I/O is available by specifying direct access I/O (DX, DY))
Programming languageLD ST FBD SFC
Extended programming languageFunction block (FB), label programming (system/local/global)
Program execution typeInitial, scan, fixed scan, interrupt, standby
Number of I/O points [X/Y] (point)4096
Constant scan (ms)
(Function for keeping regular scan time)
0.5…2000
(Setting available in 0.1 ms increments)
Memory capacity
Program capacity (step)40K
Program memory (byte)160K
Device/label memory*6 (byte)400K
Data memory (byte)2M
Width (mm):27.8
Height (mm):108
Depth (mm):110
Weight (Kg):0.2



LD : Ladder diagram ST : Structured text FBD : Function block diagram SFC : Sequential function chart



Catalog PDF

MELSEC iQ-R CPU Module User’s Manual
