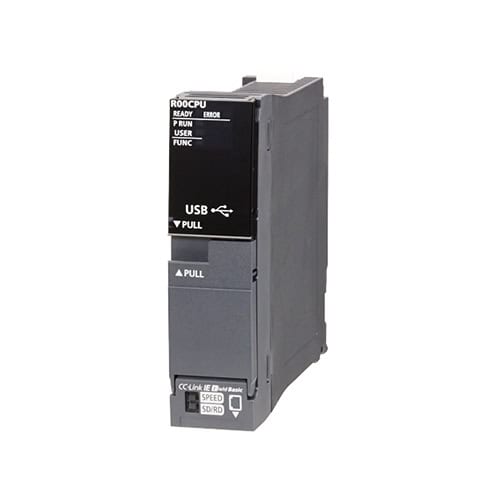

R00CPU
PLC iQ-R CPU module; 4096 I/O; 31,3 ns/com.; 10k steps
Description
Mitsubishi R00CPU MELSEC iQ-R Series Sequencer CPU
Item | R00CPU | |||||||
Control method | Stored program cyclic operation | |||||||
I/O control mode | Refresh mode (Direct access I/O is available by specifying direct access I/O (DX, DY)) | |||||||
Programming language | ||||||||
Extended programming language | Function block (FB), label programming (system/local/global) | |||||||
Program execution type | Initial, scan, fixed scan, interrupt, standby | |||||||
Number of I/O points [X/Y] (point) | 4096 | |||||||
Constant scan (ms) (Function for keeping regular scan time) | 0.5…2000 (Setting available in 0.1 ms increments) | |||||||
Memory capacity | ||||||||
Program capacity (step) | 10K | |||||||
Program memory (byte) | 40K | |||||||
Device/label memory*6 (byte) | 252K | |||||||
Data memory (byte) | 1.5M |
: Ladder diagram : Structured text : Function block diagram : Sequential function chart
