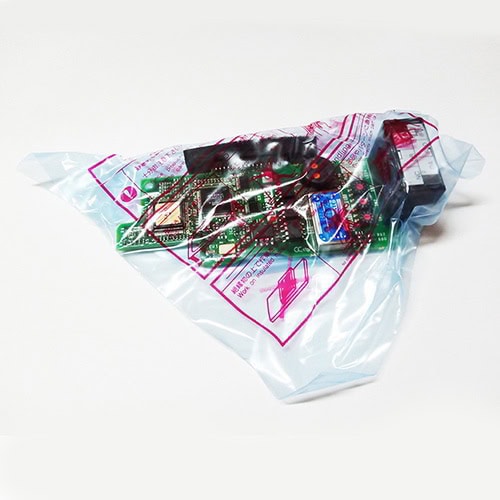

Mitsubishi FR-E5NC CC-Link Interface For E500 Series Inverter Drives

Mitsubishi Communication Module for use with E500 Series
Model: FR-E5NC

Pre-Operation Instructions:
– Type: Inverter inboard option fitted to the terminal block (can be mounted/dismounted to/from the inverter front face).
– Power supply: 5VDC supplied from the inverter.
– Number of units connected: 42 units maximum (1 station occupied by 1 unit).
– Terminal block 8-pin terminal block (M3 X 6 screws).
– Cable size: 0.75mm2 to 2.00mm2.
– Station type: Remote device station.
– Number of stations occupied: one Inverter occupies one station.
– Communication cable: CC-Link dedicated cable, CC-Link Version 1.10 compatible CC-Link dedicated cable.
