FR-A820-75K-1 Inverter
Inverter Motor Capacity Rated: 75kW, Rated Current: 288A
Description

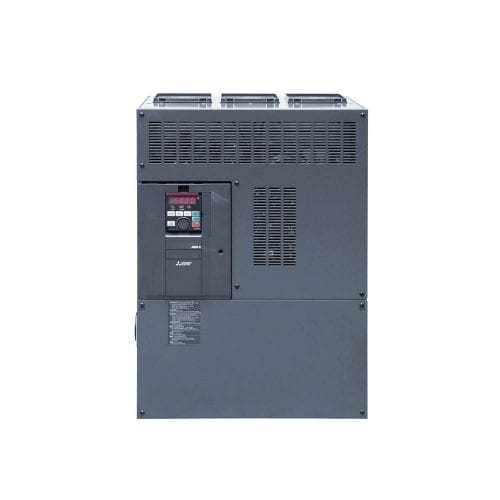

Mitsubishi FR-A820-75K-1 Series Frequency Inverter
Type: | FR-A800 – 200 V class Advanced Inverter |
Minimum Rated Voltage: | 200 V |
Min. Permissible Voltage: | 170 V |
Maximum Rated Voltage: | 240 V |
Max. Permissible Voltage: | 264 V |
Current Type: | AC |
Phases: | 3 |
Rated Output Current SLD: | 380 A |
Rated Output Current LD: | 346 A |
Rated Output Current ND: | 288 A |
Rated Output Current HD: | 215 A |
Rated Motor Capacity SLD: | 90/110 kW |
Rated Motor Capacity LD: | 90 kW |
Rated Motor Capacity ND: | 75 kW |
Rated Motor Capacity HD: | 55 kW |
Control Method: | VECTOR CONTROL |
Motor Type: | INDUCTION MOTOR, PM MOTOR |
