SC3W-M5-6

SC3W-M5-6

Elbow speed control valve with push-in fitting. Piping screw is coated with sealant.



Category:

Description

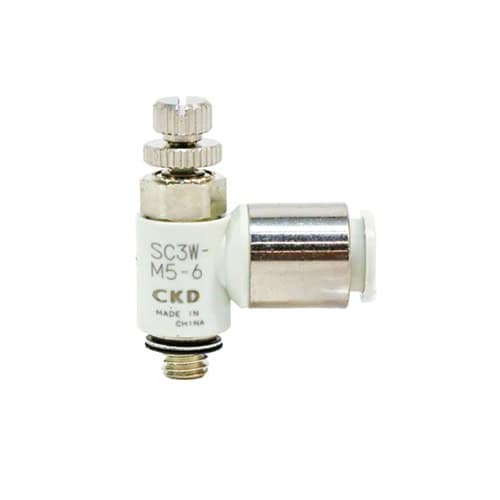

CKD SC3W-M5-6 Series One-Touch Speed Controller

Type:One-Touch Speed Controller
Working fluid:Compressed air
Max. working pressure:1.0 MPa (150 psi, 10 bar)
Min. working pressure:0.05 MPa (7.3 psi, 0.5 bar)
Proof pressure:1.5 Mpa (220 psi, 15 bar)
Fluid temperature °C:5 (41°F) to 60 (140°F)
Port size:M5
Compatible tube Ø:6 mm
Weight:9.6 g
