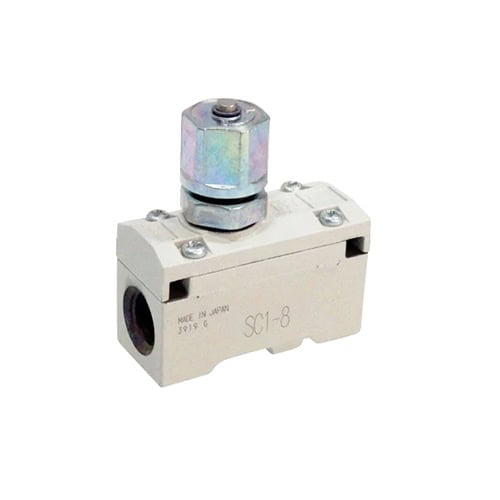

SC1-8
Inline speed controller medium bore size, Mountable from either the bottom or the side, Adjusting dial with dislocation prevention.
Description
CKD SC1-8 Series Speed Controller
Type: | Speed Controller Medium Bore Size |
Working fluid: | Compressed air |
Max. working pressure: | 1.0 Mpa (150 psi, 10 bar) |
Proof pressure: | 1.5 Mpa (220 psi, 15 bar) |
Fluid temperature °C: | 5 (41°F) to 60 (140°F) |
Port size: | Rc 1/4 |
Weight: | 95 g |
Cylinder bore size: | Ø32 to Ø75 |
Dial value (needle position): | 10 |
Free flow rate: | 930 µmin(ANR) |
Controlled flow rate: | 870 µmin(ANR) |
