NCK-00-2.6-N1

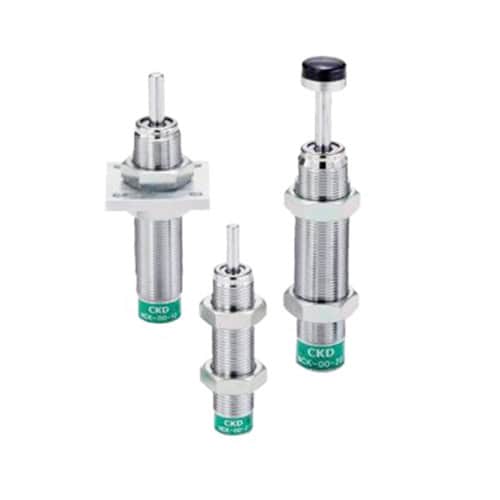

CKD NCK Series Fixed Short Absorber Ideal buffering device for stopping a workpiece with thrust at medium or slow speeds.
Description
CKD NCK-00-2.6-N1 Series Fixed Short Absorber With Stop Nut
| Max. energy absorption (J): | 26 | |
| Type / Classification: | Spring return without an adjuster | |
| O.D thread size (mm): | M14 X 1.5 | |
| Stroke length (mm): | 15.0 | |
| Max. absorbed energy (kJ/hr): | 39.0 | |
| Max. colliding speed (m/s): | 2.0 | |
| Max. operating frequency (Cycle/min): | 25 | |
| Ambient temperature °C: | -10 (14°F) ~ 80 (176°F) | |
| Max. load (N): | 4000 | |
| Weight (kg): | 0.07 | |
| Return spring force | When extended (N): | 5.9 |
| When compressed (N): | 11.8 | |
