SSD2 Series

SSD2 Series

Space-saving square type, wide selection of specification incl hi-load and switch sensing types [Bore Size] dia.12-200

Category:

Description

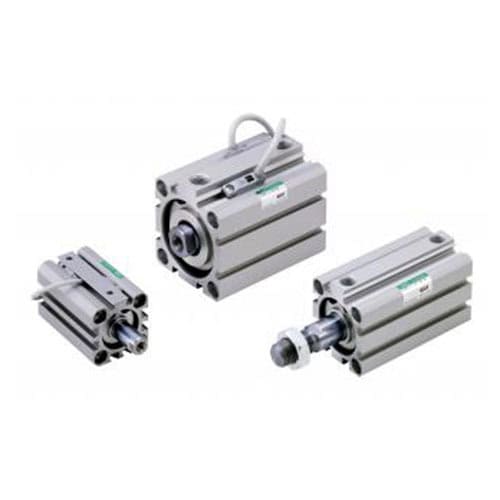

CKD SSD2 Series Compact Cylinder

Space-saving series with a wide range of stroke lengths and switch mounting surface options compared with conventional models.
A widely varied series of space-saving cylinders, suitable for everything from general environments to specific applications.

Variations

Model No.Product nameBore size
SSD2Double acting / single rodφ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100, φ125, φ140, φ160, φ180, φ200
SSD2-KDouble acting / single rod / high loadφ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-XSingle acting / pushφ12, φ16, φ20, φ25, φ32, φ40, φ50
SSD2-YSingle acting / pullφ12, φ16, φ20, φ25, φ32, φ40, φ50
SSD2-T1Double acting / heat resistanceφ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-T1LDouble-acting / heat resistanceφ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63
