SCS2 Series
Large bore size [Bore Size] dia.125-250
Description

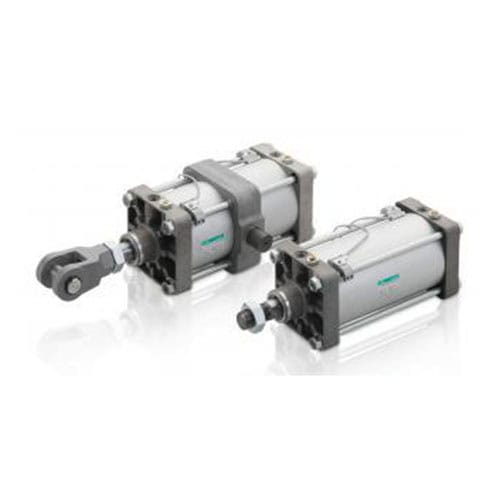

CKD SCS2 Series Large Bore Size Cylinder
Large bore size (φ125 to φ250) series of standard tie rod cylinders. Cylinders with a wide range of choices, high rigidity, and more reliability. Lighter than ever before, adopting an aluminum cover and tube to halve the product weight.
Variations
Part Number | Bore (mm) | Stroke (mm) |
SCS2-00-125B-50 | 125 | 50 |
SCS2-00-125B-75 | 125 | 75 |
SCS2-00-125B-100 | 125 | 100 |
SCS2-00-125B-150 | 125 | 150 |
SCS2-00-125B-200 | 125 | 200 |
SCS2-00-125B-250 | 125 | 250 |
SCS2-00-125B-300 | 125 | 300 |
SCS2-00-140B-50 | 140 | 50 |
SCS2-00-140B-75 | 140 | 75 |
SCS2-00-140B-100 | 140 | 100 |
SCS2-00-140B-150 | 140 | 150 |
SCS2-00-140B-200 | 140 | 200 |
SCS2-00-140B-250 | 140 | 250 |
SCS2-00-140B-300 | 140 | 300 |
SCS2-00-160B-50 | 160 | 50 |
SCS2-00-160B-75 | 160 | 75 |
SCS2-00-160B-100 | 160 | 100 |
SCS2-00-160B-150 | 160 | 150 |
SCS2-00-160B-200 | 160 | 200 |
SCS2-00-160B-250 | 160 | 250 |
SCS2-00-160B-300 | 160 | 300 |
SCS2-00-180B-50 | 180 | 50 |
SCS2-00-180B-75 | 180 | 75 |
SCS2-00-180B-100 | 180 | 100 |
SCS2-00-180B-150 | 180 | 150 |
SCS2-00-180B-200 | 180 | 200 |
SCS2-00-180B-250 | 180 | 250 |
SCS2-00-180B-300 | 180 | 300 |
SCS2-00-200B-50 | 200 | 50 |
SCS2-00-200B-75 | 200 | 75 |
SCS2-00-200B-100 | 200 | 100 |
SCS2-00-200B-150 | 200 | 150 |
SCS2-00-200B-200 | 200 | 200 |
SCS2-00-200B-250 | 200 | 250 |
SCS2-00-200B-300 | 200 | 300 |
SCS2-00-250B-50 | 250 | 50 |
SCS2-00-250B-75 | 250 | 75 |
SCS2-00-250B-100 | 250 | 100 |
SCS2-00-250B-150 | 250 | 150 |
SCS2-00-250B-200 | 250 | 200 |
SCS2-00-250B-250 | 250 | 250 |
SCS2-00-250B-300 | 250 | 300 |
