SCP Series
Smallest bore size, ultra-compact and lightest weight [Bore Size] dia.6-16
Description

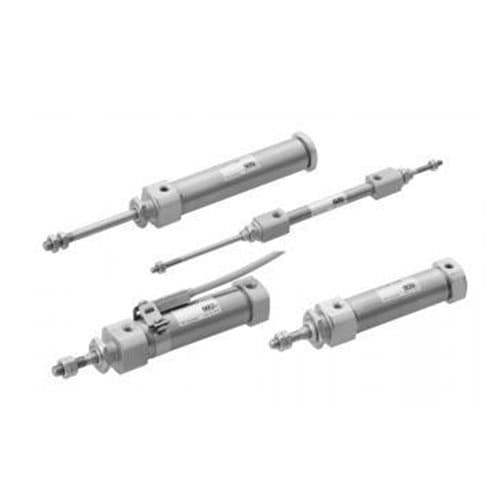

CKD SCP*3 Series Pencil Shaped Cylinder
The lightest miniature series with the smallest bore size (φ6 to φ16) among general purpose cylinders. Space-saving with compact standard switch ”T Series”. Compatible with the discontinued conventional product SCP*2 Series.
Variations
Model No. | Product name |
SCPD3 | Double-acting / single rod |
SCPS | Single-acting / push |
SCPS3 | Single-acting / push |
SCPH3 | Single-acting / pull |
SCPD3-T | Double-acting / heat resistance |
SCPD3-※C | Double-acting / rubber-air cushioned |
SCPD3-F | Double-acting / fine speed |
SCPD3-O | Double-acting / low speed |
SCPD3-D | Double-acting / double rod |
SCPS3-M | Single-acting / rotation-stop |
SCPD3-M | Double-acting / rotation-stop |
SCPD3-V | [Custom order product] Double acting / with valve |
SCPS3-V | [Custom order product] Single-acting / with valve |
SCPD3-K | [Custom order product] Double acting / with high load |
SCPD3-Z | [Custom order product] Double acting / with speed controller |
SCPD3-DT | [Custom order product] Double acting / double / rod / heat resistance |
SCPS Series
Part Number | Bore (mm) | Stroke (mm) |
SCPS-00-2.5-5 | 2.5 | 5 |
SCPS-00-2.5-10 | 2.5 | 10 |
SCPS-00-4-5 | 4 | 5 |
SCPS-00-4-10 | 4 | 10 |
SCPS-00-4-15 | 4 | 15 |
SCPS-00-4-20 | 4 | 20 |
