EXA-C6-02CB-3
Energy saving actuator with 0.6 W power consumption, PC direct drive possible.
Description

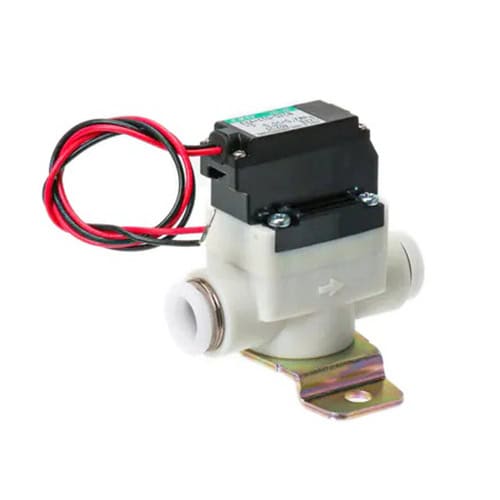

CKD EXA-C6-02CB-3 Series Pilot operated 2-port solenoid valve
| Type: | EXA series Pilot operated 2-port solenoid valve |
| Working fluid: | Compressed air |
| Max. working pressure: | 0.7 Mpa (100 psi, 7 bar) |
| Proof pressure: | 1.05 Mpa (150 psi, 10.5 bar) |
| Fluid temperature °C: | 0 (32°F) to 55 (131°F) |
| Valve structure: | Pilot-operated diaphragm drive |
| Port size: | Push-in fitting Ø 6 |
| Rated voltage: | DC 24V |
| Coil option: | Lead wire (without lamp/surge suppressor) |
| Apparent power: | 1.2 VA |
| Thermal class: | Class 130 (B) |
| Other options: | With mounting plate |
| Mass Weight (g): | 56 |
