APK11-10A-02C-AC100V

APK11-10A-02C-AC100V

Pilot kick 2-port piston drive solenoid valve compatible with a variety of fluids. It can be used from differential pressure 0 and steam specification can be selected.

Category:

Description

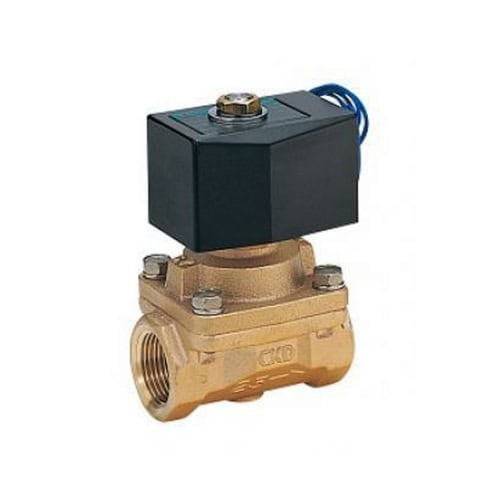

CKD APK11-10A-02C-AC100V Series 2 Port Solenoid Valve

Applicable Fluid:Air / Water / Vacuum / Oil
Port Size:Rc 3/8
Working pressure differential:0 to 1.0 MPa
Number of Solenoids: Single
Voltage:AC 100V
Body material:Brass•Bronze
Seal material:Nitrile rubber
Max. working pressure:2 MPa
Driving Type:Pilot kick Type
Coil housing:Grommet lead wire (300mm)



Catalog PDF

APK Series Solenoid Valve
