ADK11-15A-02C-AC200V
Pilot kick 2-port diaphragm drive solenoid valve compatible with a variety of fluids. It can be used with differential pressure 0 and supports various applications through material selection.
Description

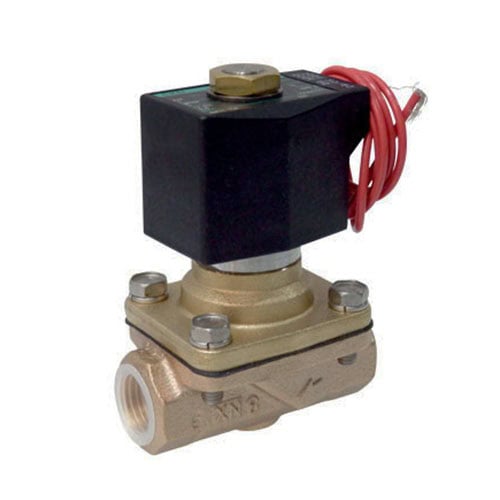

CKD ADK11-15A-02C-AC200V Solenoid Valve
| Working fluid: | Air/water/low vacuum/kerosene/oil |
| Port Size: | Rc 1/2 |
| Working pressure differential: | 0 to 1.0 MPa |
| Voltage: | AC 200V |
| Body: | Bronze |
| Seal material: | Nitrile rubber |
| Max. working pressure: | 2 MPa |
| Fluid temperature: | -10 to 60 °C |
| Atmosphere: | Place free of corrosive gas and explosive gas |
| Valve structure: | Pilot kick poppet, diaphragm drive |
| Coil housing: | Grommet lead wire (300mm) |
