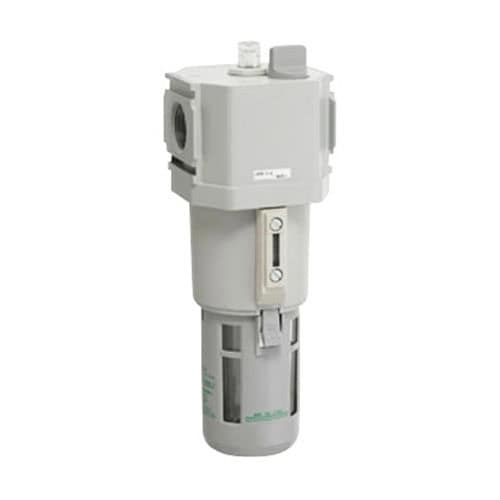

L8000-25-W Series Lubricator

L8000-25-W Series Lubricator

Supplies fine oil mist. A double plastic structure is adopted, so oil dripping can be confirmed from any angle.

Category:

Description

CKD L8000-25-W Lubricator White Series

Model No:L8000-25-W
Port Size:Rc 1
Working fluid:Compressed air
Max. working pressure (MPa):1.0
Min drip flow rate m³/min:0.065
Oil storage capacity m³:170 (MAX 360)
Oil used:Turbine oil class 1 ISO VG32
Standard accessories:Bowl guard
