C8000-25-W-F
Compact modular design in which major boundary dimensions of devices such as filters, regulators, lubricators with auto drain
Description

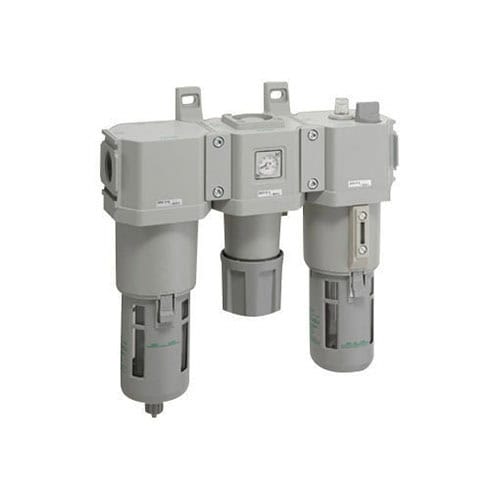

CKD C8000-25-W-F Series F.R.L Combination White With Auto Drain
| Model No: | C8000-25-W-F |
| Port Size: | Rc 1 |
| Working fluid: | Compressed air |
| Max. working pressure (MPa): | 1 |
| Ambient / fluid temperatures (°C): | 5 – 60 |
| Filtration rating μm | 5 |
| Min. drip flow rate (m3/min): | 0.065 |
| Drain capacity (cm3): | 80.0 |
| Accessories: | Pressure gauge, bracket, bowl guard |
