5100-4C-MG

5100-4C-MG

Float drain (NC: no discharge when not pressurized). Ideal for circuits generating a lot of moisture.



Category:

Description

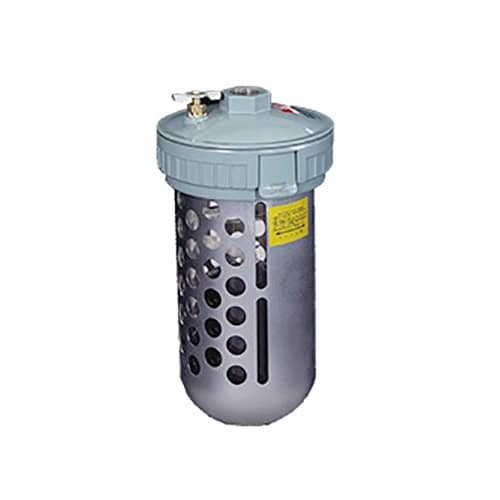

CKD 5100-4C-MG Series Heavy Duty Drain

Working fluid:Compressed air
Max.Working pressure:1.0 MPa (150 psi, 10 bar)
Proof pressure:1.5 MPa (210 psi, 15 bar)
Ambient / Fluid temperature °C:5 (41°F) to 65 (149°F)
Min. working pressure:0.069 (10 psi)
Drain discharge:170 cm³ / time
Port size:Rc 1/2
Weight:1.9 kg
Bowl guard:Standard equipment
Bowl material:Metal bowl with gauge
